1000W 26a E-Bike Motor Controller
1000W 26a E-Bike Motor Controller
Suits 36V, 48V and 52V
Regular price
$59.99
Regular price
$72.99
Sale price
$59.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Typically, you will receive your order within one week unless otherwise specified at the top of the description*. We are a local store ready to assist you with any questions.
View full details
PACKAGE INCLUDES

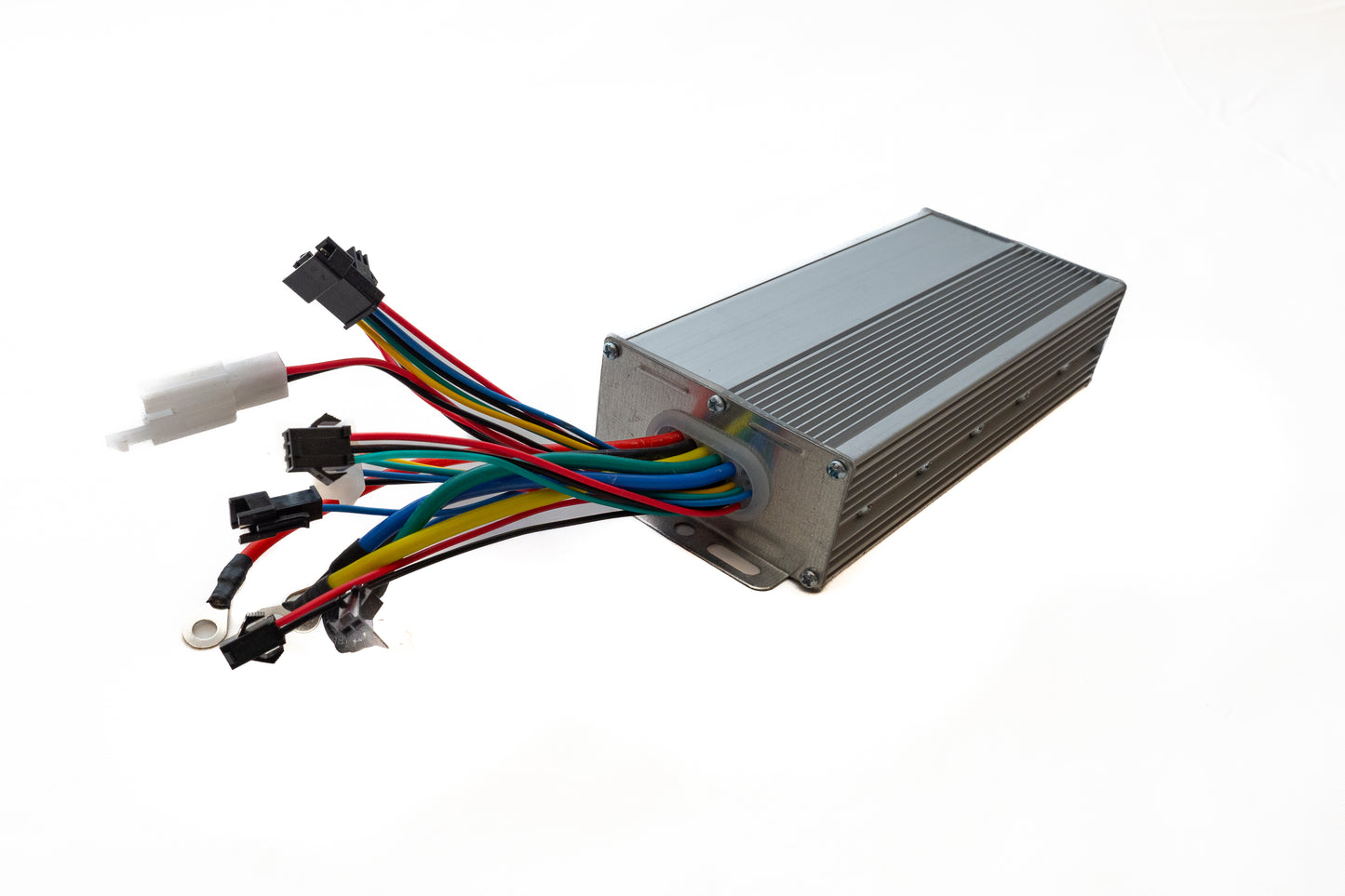

- 1 x DC Electric Bicycle Motor Controller (for SW900 LCD) - Speed Controller
KEY FEATURES

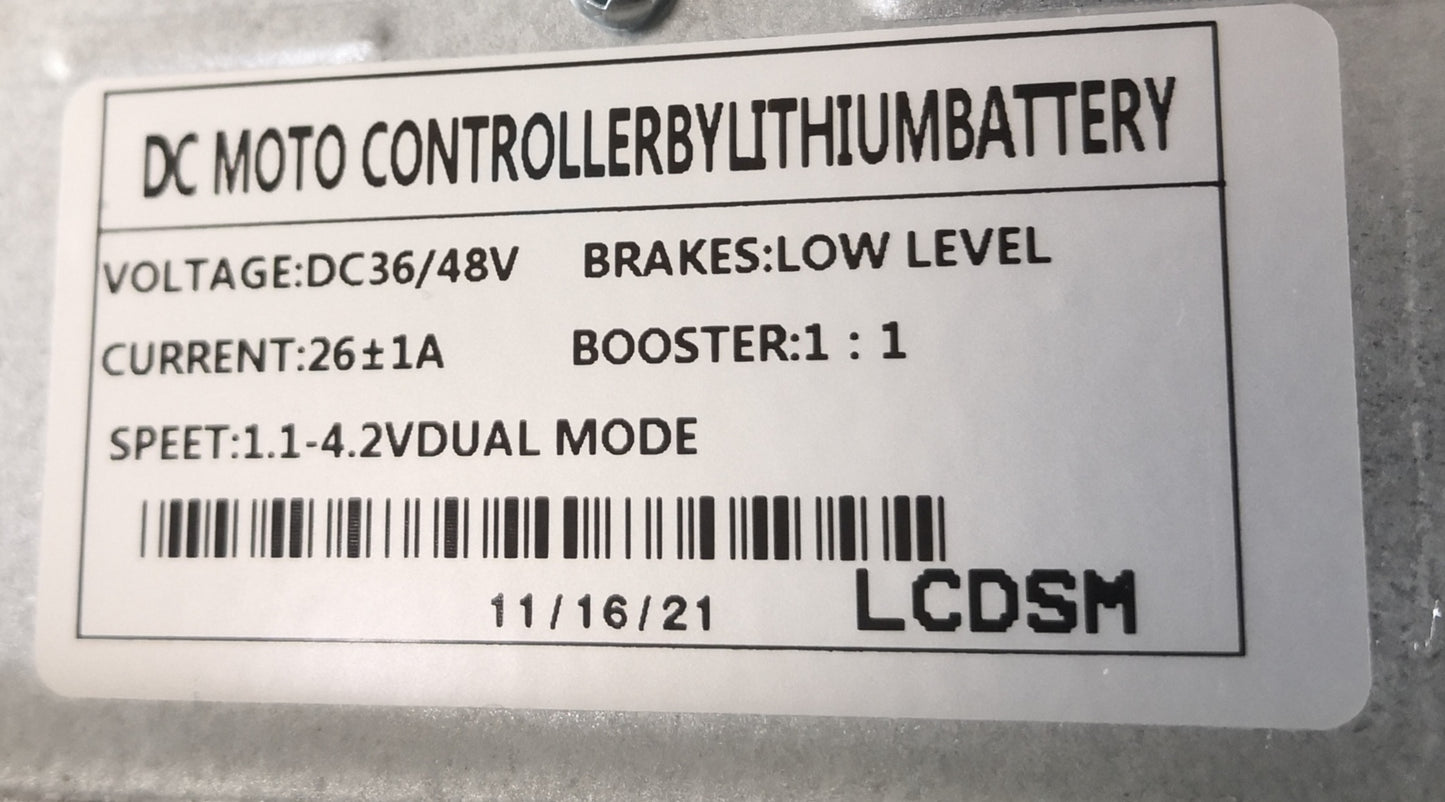

- Voltage: DC 36/48V (works with 52V battery as well)
- Current: 26 +/-1A
- Silent Pure Sinewave controller
- Pedal Assistance Power (PAS)/Speed Control
- Compatible to be used with SW900 display
- Suitable for both throttle and PAS when paired with SW900 display
- Swap between two power modes 250W or 1000W
- Smart dual mode controller which means that even if your hall sensors are damaged the motor can still operate in square wave (and slightly noisier) mode
SPECIFICATIONS
- Mass: 450g
- Geometry: 180mm x 82mm x 40mm
CONNECTORS - DESCRIPTION
|
ID |
Wire Colour |
Description |
Connect to |
|
1 |
Blue / Green / Yellow (thick) |
Phase Wires |
Motor |
|
2 |
Red/black 2 No. |
Brake cut-off |
E-Brakes |
|
3 |
Red/black (thick) |
Battery neg. (black) pos. (red) |
Battery |
|
4 |
Blue |
Road Legal switch |
To each other |
|
5 |
Red/black/yellow/green/blue |
Hall sensor |
Motor |
|
6 |
Red/black/green |
Throttle |
Throttle |
|
7 |
Red/white/black |
PAS |
PAS sensor |
|
8 |
Red/blue/black/green/yellow |
Display |
SW900 LCD |
|
9 |
Red/black |
LED light |
LED light |
NOTE
- This controller requires a 36V or 48V battery (52V works as well) (Lithium-ion recommended) with a minimum continuous output of 30 amperage. Please kindly check your battery and battery BMS specifications for suitability.

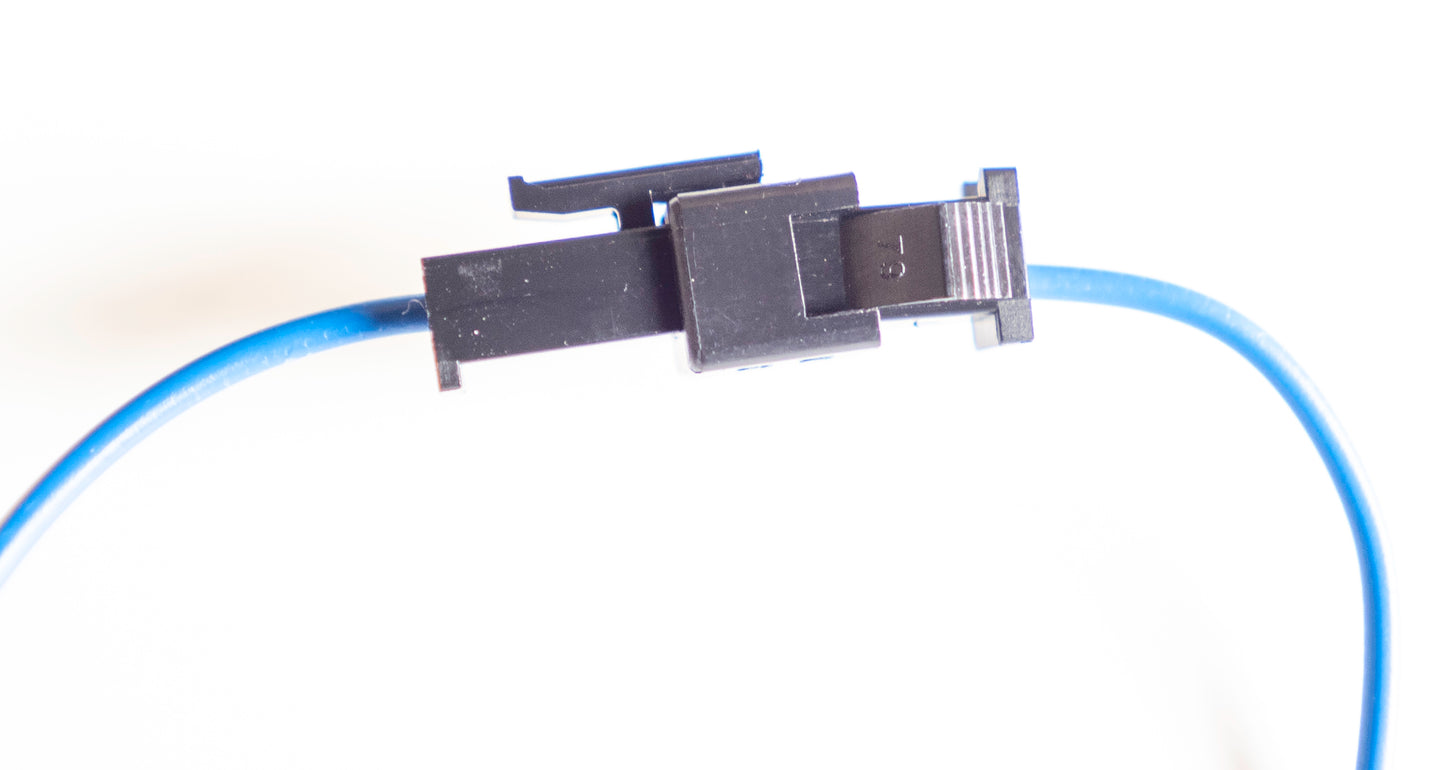

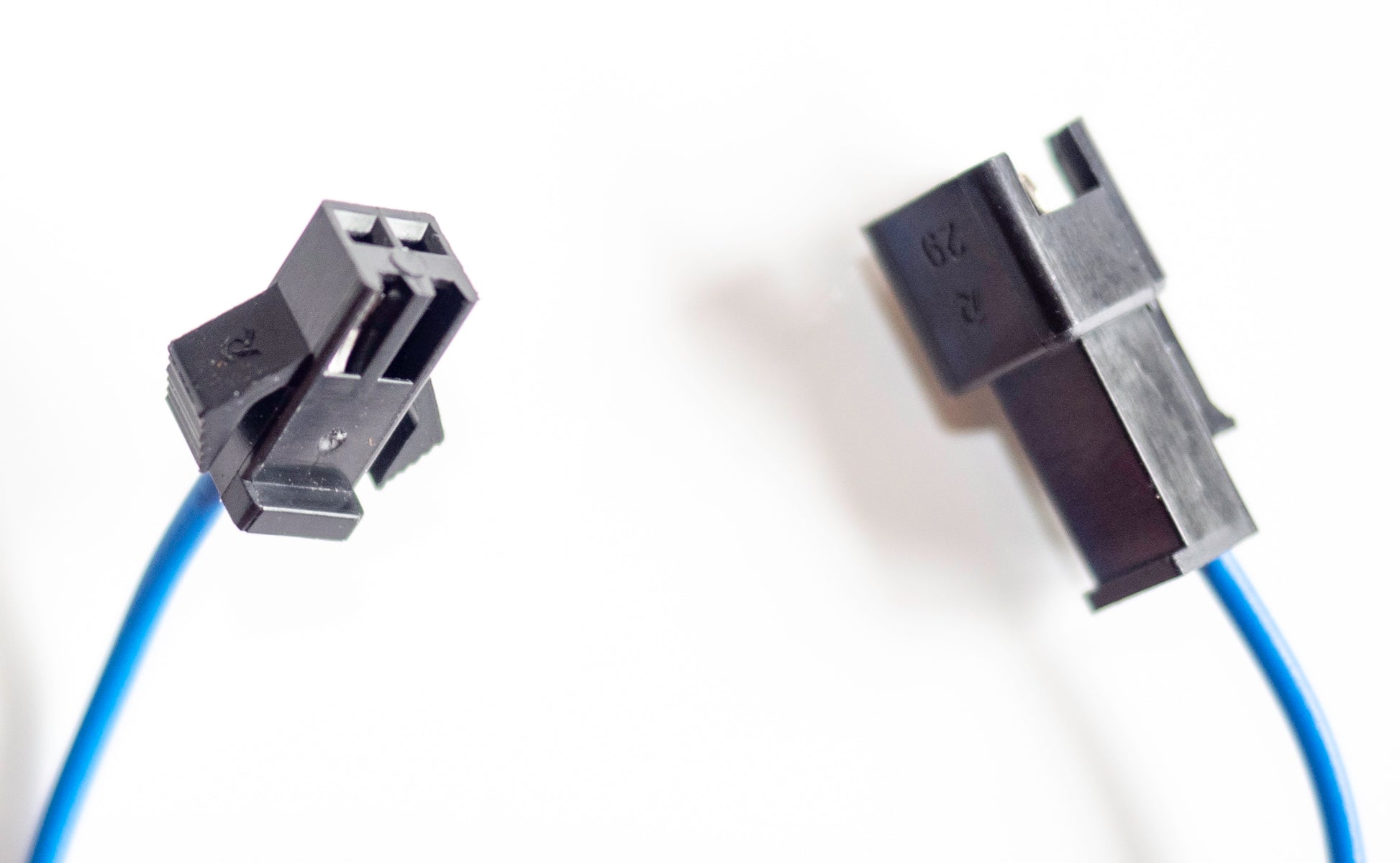

- The controller can be swapped between the full 1000W or 250W power mode by connecting the single blue wire(s) together. Please check your local guidelines and keep the road legal switch (blue wires) connected on public roads.
- Please feel free to contact us before purchasing this controller to check the compatibility to your electric bike if unsure.
