7000W 100a E-Bike Motor Speed Controller
7000W 100a E-Bike Motor Speed Controller
Suits 48V, 52V, 60V and 72V
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Typically, you will receive your order within one week unless otherwise specified at the top of the description*. We are a local store ready to assist you with any questions.
View full details
PACKAGE INCLUDES

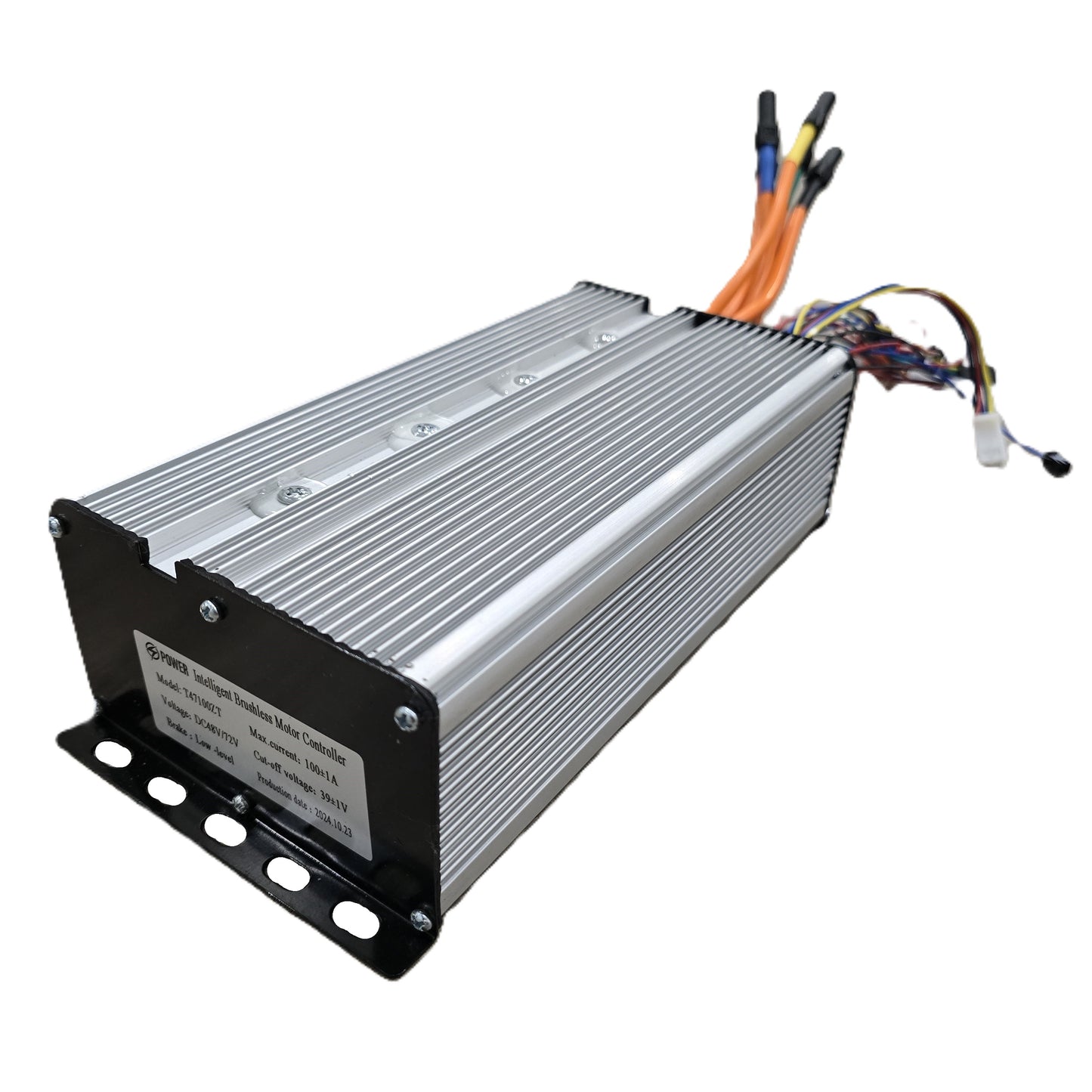

- 1 x DC Electric Bicycle Motor Controller (for SW900 LCD or UKC1 LCD)

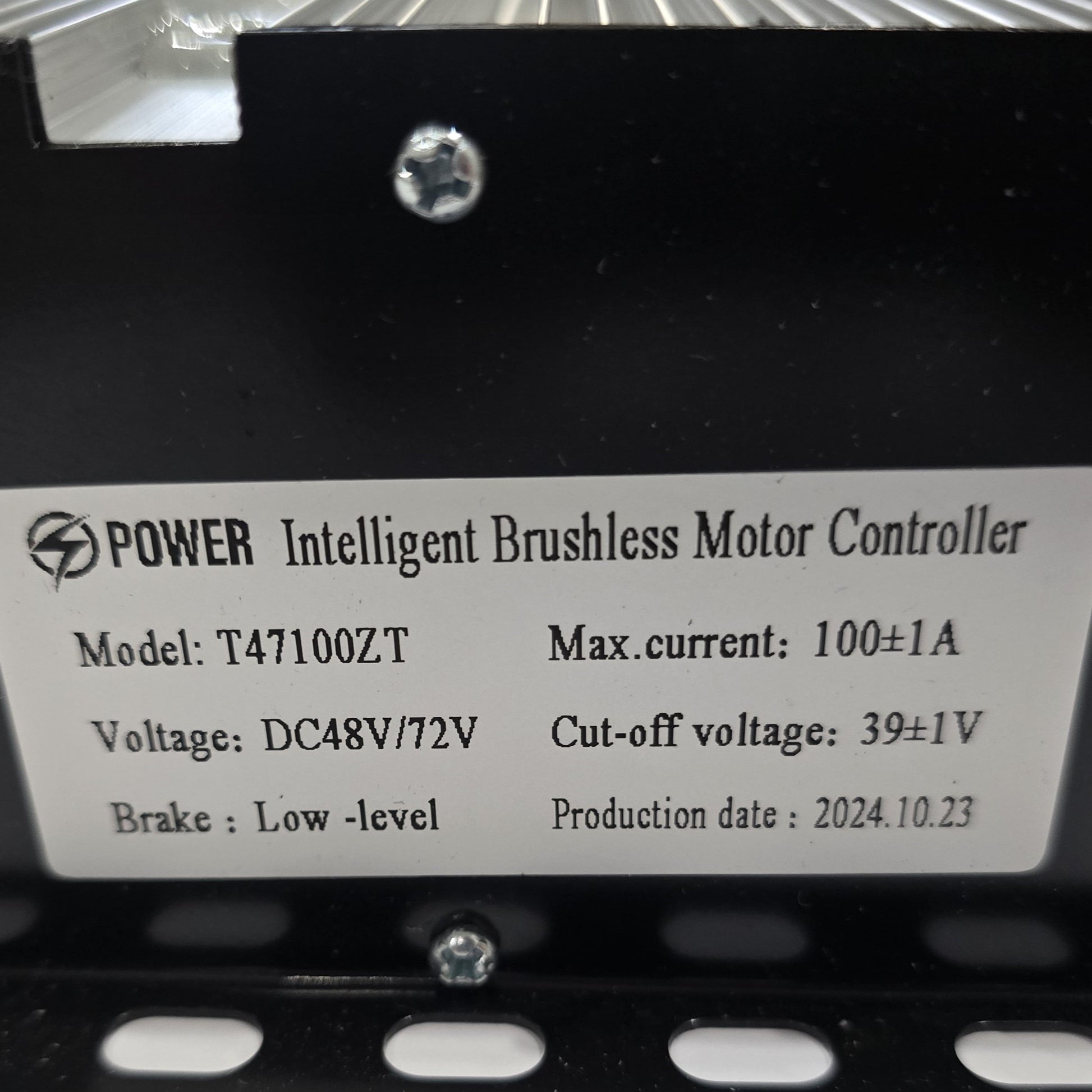

KEY FEATURES
- Voltage: DC 48/72V (suits 48V to 72V)
- Current: 100 +/- 1A
- Pedal Assistance Power (PAS)/Speed Control functionality
- Compatible to be used with SW900 display (black and white or colour display) or UKC1 display (please check connector matches before purchasing)
- Suitable for both throttle and PAS when paired with display
- Swap between two power modes 250W or 7000W
- Square Wave controller
SPECIFICATIONS
- Mass: 850g
- Geometry: 250mm x 120mm x 70mm
CONNECTORS - DESCRIPTION
|
ID |
Wire Colour |
Description |
Connect to |
|
1 |
Blue / Green / Yellow (thick) |
Phase Wires |
Motor |
|
2 |
Red/black 2 No. |
Brake cut-off |
E-Brakes |
|
3 |
Red/black (thick) |
Battery Anderson Plug neg. (black) pos. (red) |
Battery |
|
4 |
Blue |
Road Legal switch |
To each other |
|
5 |
Red/black/yellow/green/blue |
Hall sensor |
Motor |
|
6 |
Red/black/green |
Throttle |
Throttle |
|
7 |
Red/white/black |
PAS |
PAS sensor |
|
8 |
Orange/blue/black/green/yellow |
Display |
SW900 LCD |
|
9 |
Red/black |
LED light |
LED light |
NOTE
- This controller requires a 48V to 72V battery (Lithium-ion recommended) with a minimum continuous output of 100 amperage. Please kindly check your battery and battery BMS specifications for suitability.
- The controller can be swapped between the full 7000W or 250W power mode by connecting the single blue wire(s) together. Please check your local guidelines and keep the road legal switch (blue wires) connected on public roads.
- Please feel free to contact us before purchasing this controller to check the compatibility to your electric bike if unsure.
