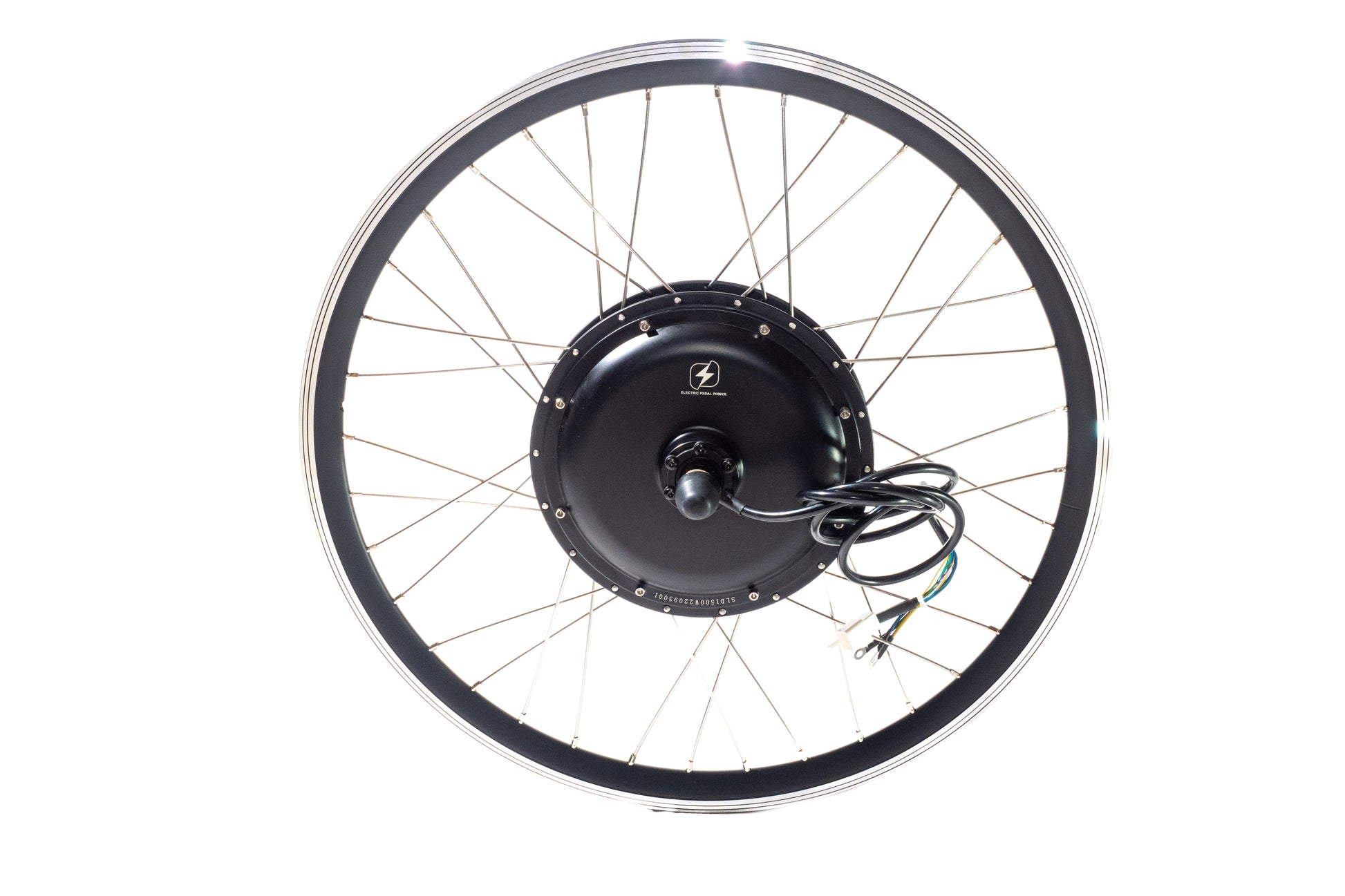

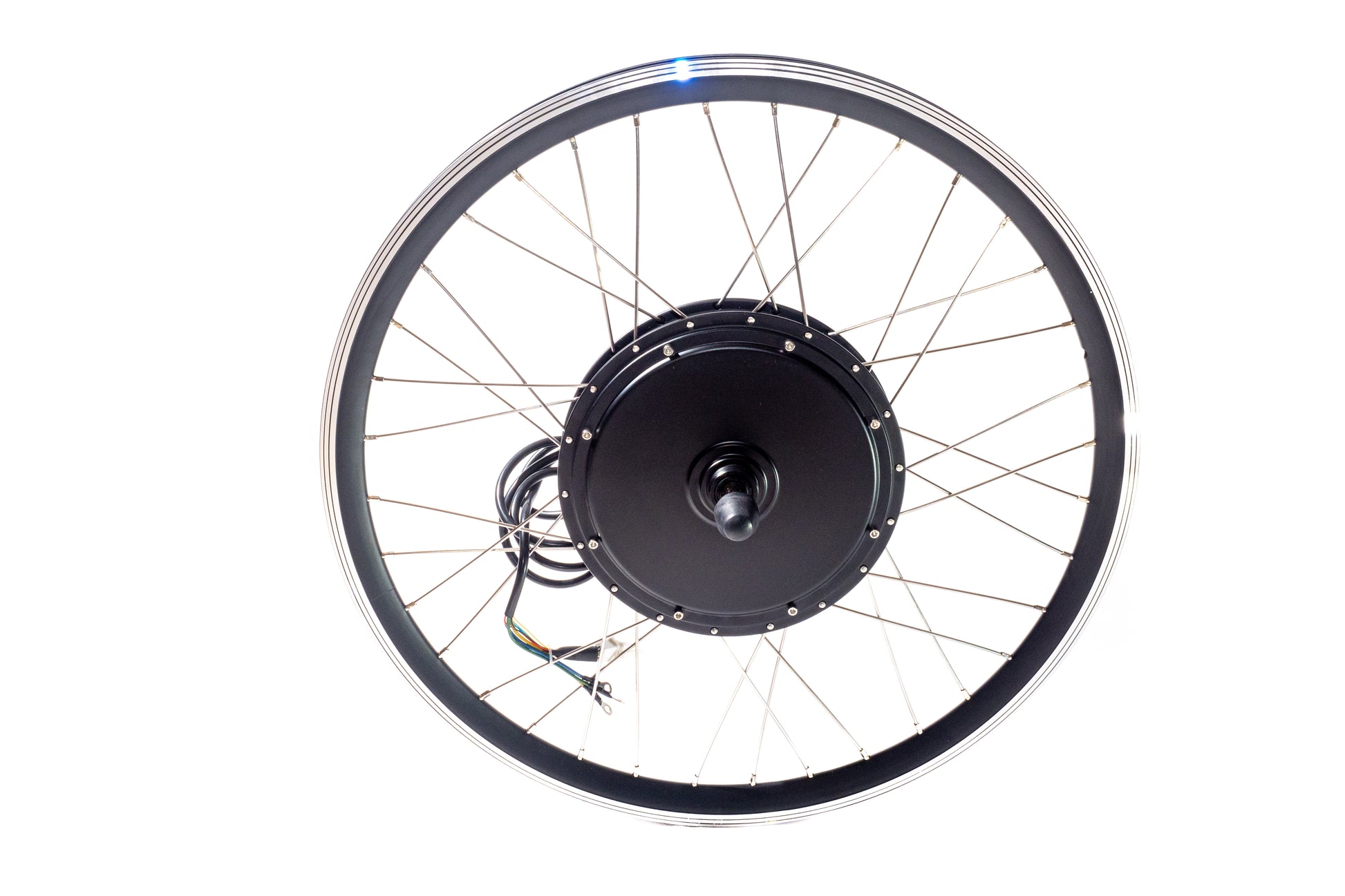

1500W 26” 27.5" 29" Rear Wheel E-Bike Motor Wheel only, V-brake

*Please be aware that this item may take up to 6 weeks to reach you

High Performance Electric Bicycle Motor:

This High-Performance Rear Electric Bike Motor is suitable for bikes with a 135 mm rear drop-out width (not suitable for thru-axle bikes) and compatible for bikes with disc brake and v-brake set-ups. The motor delivers high-power and allows you to maintain your speed up hills and into the wind.

Our 1500W motor, compared to the 1000W motor, has a wider stator and larger magnets, and therefore produces more torque for increased acceleration and higher speed up hills. This motor is intented for off-road use only. Please check your local laws and regulations to make sure that this wheel suits you before purchasing

A controller, tyre, throttle, display, PAS (pedal assist sensor), battery and battery charger not included. Use a 48V or 52V battery for optimal performance.

PACKAGE INCLUDES

• 1 x Brushless Direct Drive (gearless) Rear 26” Wheel Hub Motor 1500W
• 1 x User Manual

KEY FEATURES

• 36V 48V 52V 60V 72V 1500W powerful Brushless and Gearless (Direct Drive) Hub Motor
• 490 rpm at 48V

SPECIFICATIONS

• Wheel Type: Rear Wheel
• Drop out: 135mm
• Wheel size: 26"
• Rim: Alloy double wall
• Gears: Freewheel / screw-on (not suitable for Cassette)
• Motor: Brushless DC direct drive
• Torque: 55 Nm
• Power: 1500W (private use) or 250W
• Speed: 55 km/hr with 48V (private use) or 25 km/hr
• Spokes: Steel 12Gx2.6mm
• Mass: 4 kg

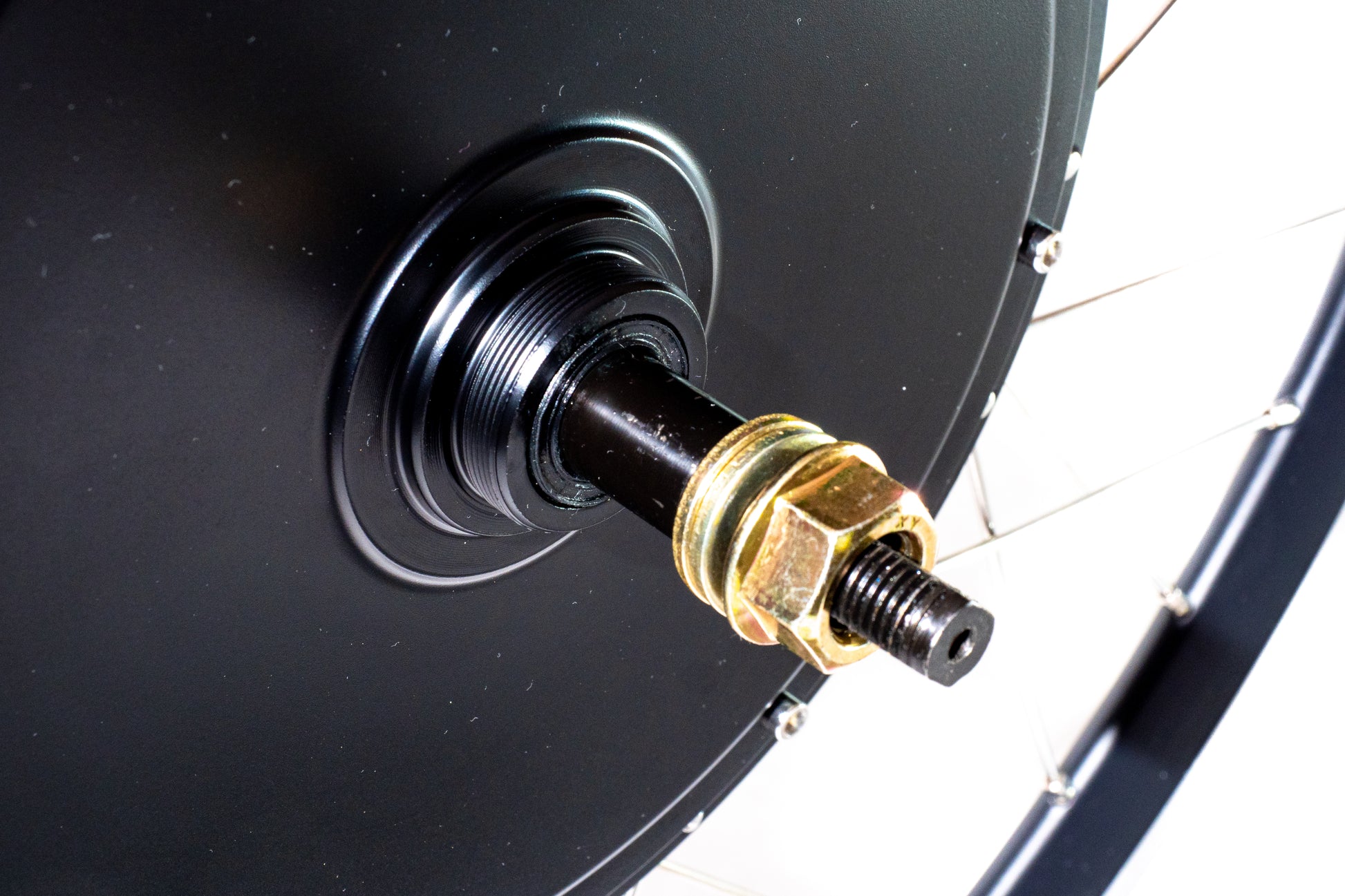

• Wheel Axle: 210mm x 10mm DIA.
• Load capacity: 150 kg (inclusive of the completed bike and rider)

Torque arms/plates are not included. Please contact us should you require any more information on installation procedures.
